UE5 实现一个简单的攀爬（Parkour）模块 —— 代码解析与系统说明

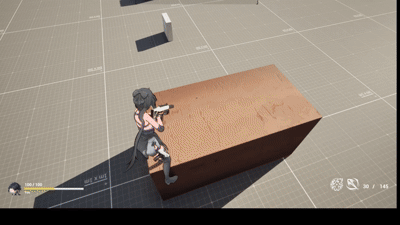

在这篇文章中，我将通过一个完整的 ParkourComponent 代码实现，介绍如何在 UE 中实现一个基础但稳定的攀爬系统。本系统支持：

  • 前方检测墙体
  • 自动判断攀爬类型（Jump / Mantle / Climb / Vault）
  • 自动计算目标点并使用 Motion Warping 对齐动画
  • 在攀爬过程中自动控制摄像机与角色输入

本文会结合核心代码对整个系统进行详细说明，帮助你快速了解 UE 中一个可扩展的攀爬系统是如何实现的。

一、系统总体设计概述

整个攀爬模块基于三个阶段：

1. 环境检测（Three-step Tracing）

进入攀爬前，系统使用三类球形 Sweep 探测来判断是否能够攀爬且属于什么类型：

  1. Forward Trace：检测前方是否存在墙体
  2. Vertical Trace（Top）：检测墙顶位置，计算墙体高度
  3. Vertical Trace（Thickness）：检测墙体厚度与可站立区域

最终决定包含：

  • WallNormal（墙体法线）
  • WallRotation（面对墙体的旋转）
  • WallHeight（墙高）
  • WallTopLocation（墙顶位置）
  • WallEndLocation（墙后落点）
  • WallIsThick（墙是否够厚）

2. 动作选择（Parkour Type Decision）

系统根据墙的高度决定不同动作：

1
2
3
4
if (WallHeight < 150.f)
    ParkourType = EParkourType::Jump;
else if (WallHeight < 250.f)
    ParkourType = EParkourType::Climb;

3. 动作执行（Motion Warping + Camera + Input）

包括：

  • 设置 Motion Warping 的 Start / End 目标点
  • 根据动画需求动态偏移位置（Offset）
  • 攀爬期间关闭部分输入
  • 使摄像机自动跟随角色旋转

动画过程会非常平滑自然。

二、三次关键射线检测分析

攀爬系统最关键的逻辑是三次球形 Sweep 探测，下面详细分析其作用与实现。

1. Forward Trace（前向检测）

目的：检测前方是否有墙体

1
2
StartLocation = Character->GetActorLocation() - FVector(0,0,20);
EndLocation   = StartLocation + Character->GetActorForwardVector() * 50;

用途：

  • 判断是否有可攀爬墙体
  • 获取墙体法线 ImpactNormal
  • 获取墙体旋转（用于 Motion Warping）
  • 若撞到 Pawn 则不进行攀爬

检测到墙体后：

1
2
3
WallLocation = HitResult.ImpactPoint;
WallNormal   = HitResult.ImpactNormal;
WallRotation = MakeRotFromX(-WallNormal);

2. Vertical Trace（检测墙体高度）

目的：找出墙顶位置与墙高

顶部向下 Sweep：

1
2
Start = EndLocation + FVector(0,0,900);
End   = WallLocation - WallNormal * Scale;

若检测到顶部：

1
2
WallTopLocation = HitResult.ImpactPoint;
WallHeight = WallTopLocation.Z - 角色脚底Z;

并绘制调试球：

1
DrawDebugSphere(..., FColor::Magenta);

3. Vertical Trace（检测墙体厚度）

目的：判断墙体是否有足够厚度用于落脚

使用 Scale = 65.f 再 Sweep 一次：

1
VerticalTrace(65.f)

判断墙是否够厚：

1
2
WallIsThick = HitResult.bBlockingHit &&
               WallEndLocation.Z >= (WallTopLocation.Z - 5);

厚墙通常用于 Mantle，而薄墙可用于 Vault。

三、Motion Warping 使用与目标点计算

Motion Warping 的作用是让动画的 Root Motion 自动对齐到环境的真实位置。

系统设置两个 Warp Target：

  • Start：动作开始点
  • End：动作结束点（最终要站的位置）
1
2
3
4
5
MotionWarpingComponent->AddOrUpdateWarpTargetFromLocationAndRotation(
    "Start", StartLocation, WallRotation);

MotionWarpingComponent->AddOrUpdateWarpTargetFromLocationAndRotation(
    "End", EndLocation, WallRotation);

Offset 的作用：微调位置以匹配最真实的攀爬效果

1
2
WarpOffset(StartLocation, StartForwardOffset, StartUpOffset);
WarpOffset(EndLocation, EndForwardOffset, EndUpOffset);

为什么需要 Offset？

动画中的 Root Motion 与关卡环境永远不可能百分之百匹配。
因此必须通过 Offset 手动微调：

✔ UpOffset（上下调节）

  • 角色在动画结束时高于实际墙面 → 使用负的 UpOffset
  • 角色陷入墙体或位置偏低 → 增加 UpOffset

示例：

  • UpOffset = -10 → 下移 10 cm
  • UpOffset = 15 → 上移 15 cm

✔ ForwardOffset（前后调节）

  • 角色在动作开始时离墙太近 → 减少 ForwardOffset
  • 角色陷入墙体 → 增加 ForwardOffset
  • 攀爬动作起跳不自然 → 调整 ForwardOffset 让站位更正确

Offset 的存在极大提高了 Motion Warping 的“容错性”，让你能适配各种不同动画和场景尺寸。

四、攀爬过程中的摄像机控制

攀爬过程中，不希望玩家乱转视角导致动作不自然，因此本系统加入了摄像机与输入控制。

1. 进入攀爬时的设置

1
2
3
Character->DisableInput();
Character->CameraBoom->bDoCollisionTest = false;
Character->bUseControllerRotationYaw = false;

效果：

  • 禁用玩家移动输入
  • 关闭摄像机碰撞避免抖动
  • 摄像机通过 Lag 平滑跟随角色旋转

2. Tick 中锁定 Controller 的 Yaw

攀爬时角色面向墙体，而控制器方向可能不同，需要同步：

1
2
ControlRot.Yaw = Character->GetActorRotation().Yaw;
Controller->SetControlRotation(ControlRot);

避免：

  • 摄像机回弹
  • 动作结束后瞬间旋转

3. 离开攀爬时恢复默认设置

1
2
3
Character->EnableInput();
Character->CameraBoom->bDoCollisionTest = true;
Character->bUseControllerRotationYaw = true;

并同步一次摄像机角度，保证退出攀爬时画面平滑。

五、ParkourComponent

这里是跑酷组件的代码，后续将跑酷组件的功能部分分解到GAS框架下。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
#include "Components/ParkourComponent.h"
#include "GameFramework/Character.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "DrawDebugHelpers.h"
#include "Characters/BaseCharacter.h"
#include "Components/CapsuleComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "Kismet/KismetMathLibrary.h"

UParkourComponent::UParkourComponent()
{
	PrimaryComponentTick.bCanEverTick = true;
	SphereTraceRadius = 15.f;
}

EParkourType UParkourComponent::GetParkourType()
{
	if (ACharacter* Character = Cast<ACharacter>(GetOwner()))
	{
		const FHitResult HitResult = ForwardTrace();
		if (!HitResult.IsValidBlockingHit())
			return EParkourType::Jump;

		if (Cast<APawn>(HitResult.GetActor()))
			return EParkourType::None;

		WallLocation = HitResult.ImpactPoint;
		WallNormal = HitResult.ImpactNormal;
		WallRotation = UKismetMathLibrary::MakeRotFromX(-WallNormal);

		CalWallHeight();
		CalWallThickness();

		if (GEngine)
		{
			GEngine->AddOnScreenDebugMessage(
				-1, 1.f, FColor::Green,
				FString::Printf(TEXT("WallHeight: %.2f, WallIsThick: %d"), WallHeight, WallIsThick)
			);
		}

		EParkourType ParkourType = EParkourType::Jump;

		if (WallHeight < 150.f)
		{
			ParkourType = EParkourType::Jump;
		}
		/*else if (WallHeight < 150.f)
		{
			/*if (WallIsThick)
				ParkourType = EParkourType::Mantle;
			else
				ParkourType = EParkourType::Vault;#1#
		}*/
		else if (WallHeight < 250.f)
		{
			ParkourType = EParkourType::Climb;
		}

		if (ParkourType != EParkourType::Jump && ParkourType != EParkourType::None)
		{
			SetMotionWarpingTargets(ParkourType);
			SetParkourState(true);

			UAnimMontage* MontageToPlay = nullptr;
			switch (ParkourType)
			{
				case EParkourType::Mantle: MontageToPlay = MantleMontage; break;
				case EParkourType::Vault:  MontageToPlay = VaultMontage; break;
				case EParkourType::Climb:  MontageToPlay = ClimbMontage; break;
				default: break;
			}

			if (MontageToPlay && Character->GetMesh()->GetAnimInstance())
			{
				FOnMontageEnded MontageEndedDelegate;
				MontageEndedDelegate.BindLambda([this](UAnimMontage*, bool)
				{
					SetParkourState(false);
				});

				Character->PlayAnimMontage(MontageToPlay);
				Character->GetMesh()->GetAnimInstance()->Montage_SetEndDelegate(MontageEndedDelegate, MontageToPlay);
			}
		}

		return ParkourType;
	}

	return EParkourType::Jump;
}

void UParkourComponent::BeginPlay()
{
	Super::BeginPlay();
}

void UParkourComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

	if (bIsInParkour)
	{
		if (ACharacter* Character = Cast<ACharacter>(GetOwner()))
		{
			if (AController* Controller = Character->GetController())
			{
				FRotator ControlRot = Controller->GetControlRotation();
				ControlRot.Yaw = Character->GetActorRotation().Yaw;
				Controller->SetControlRotation(ControlRot);
			}
		}
	}

}

FHitResult UParkourComponent::ForwardTrace()
{
	if (!GetWorld()) return FHitResult();

	if (ACharacter* Character = Cast<ACharacter>(GetOwner()))
	{
		if (Character->GetCharacterMovement() && Character->GetCharacterMovement()->IsMovingOnGround())
		{
			FHitResult HitResult;
			FVector StartLocation = Character->GetActorLocation() - FVector(0.f, 0.f, 20.f);
			FVector EndLocation = StartLocation + Character->GetActorForwardVector() * 50.f;

			FCollisionQueryParams TraceParams;
			TraceParams.bTraceComplex = true;
			TraceParams.AddIgnoredActor(GetOwner());

			GetWorld()->SweepSingleByChannel(
				HitResult,
				StartLocation,
				EndLocation,
				FQuat::Identity,
				ECollisionChannel::ECC_Visibility,
				FCollisionShape::MakeSphere(SphereTraceRadius),
				TraceParams
			);

			DrawDebugSphere(GetWorld(), StartLocation, SphereTraceRadius, 16, FColor::Blue, false, 1.f);
			DrawDebugSphere(GetWorld(), EndLocation, SphereTraceRadius, 16, FColor::Blue, false, 1.f);
			DrawDebugLine(GetWorld(), StartLocation, EndLocation, FColor::Cyan, false, 1.f, 0, 2.f);

			if (HitResult.IsValidBlockingHit())
			{
				DrawDebugSphere(GetWorld(), HitResult.Location, SphereTraceRadius * 1.2f, 16, FColor::Red, false, 1.f);
				DrawDebugLine(GetWorld(), HitResult.Location, HitResult.Location + HitResult.Normal * 40.f, FColor::Green, false, 1.f, 0, 2.f);
			}*/

			return HitResult;
		}
	}
	return FHitResult();
}

void UParkourComponent::VerticalTrace(float Scale, FHitResult& HitResult, bool bTopToDown)
{
	FVector EndLocation;
	FVector StartLocation;
	if(bTopToDown)
	{
		EndLocation = WallLocation - WallNormal * Scale;
		StartLocation = EndLocation + FVector(0.f, 0.f, 900.f);
	}
	else
	{
		StartLocation = WallLocation - WallNormal * Scale;
		EndLocation = StartLocation + FVector(0.f, 0.f, 900.f);
	}

	/*DrawDebugLine(GetWorld(), StartLocation, EndLocation, FColor::Yellow, false, 100.f, 0, 2.f);*/

	FCollisionQueryParams TraceParams;
	TraceParams.bTraceComplex = true;
	TraceParams.AddIgnoredActor(GetOwner());

	GetWorld()->SweepSingleByChannel(
		HitResult,
		StartLocation,
		EndLocation,
		FQuat::Identity,
		ECollisionChannel::ECC_WorldStatic,
		FCollisionShape::MakeSphere(SphereTraceRadius),
		TraceParams
	);

	/*DrawDebugSphere(GetWorld(), StartLocation, SphereTraceRadius, 16, FColor::Yellow, false, 100.f);
	DrawDebugSphere(GetWorld(), EndLocation, SphereTraceRadius, 16, FColor::Yellow, false, 100.f);
	DrawDebugLine(GetWorld(), StartLocation, EndLocation, FColor::Orange, false, 100.f, 0, 2.f);
	*/

	if (HitResult.IsValidBlockingHit())
	{
		DrawDebugSphere(GetWorld(), HitResult.Location, SphereTraceRadius * 1.2f, 16, FColor::Cyan, false, 100.f);
	}
}

void UParkourComponent::CalWallHeight()
{
	if (!GetWorld()) return;

	FHitResult HitResult;
	VerticalTrace(5.f, HitResult);

	if (ACharacter* Character = Cast<ACharacter>(GetOwner());
		Character && HitResult.IsValidBlockingHit())
	{
		WallTopLocation = HitResult.ImpactPoint;
		WallHeight = WallTopLocation.Z -
			(Character->GetActorLocation().Z - Character->GetCapsuleComponent()->GetScaledCapsuleHalfHeight());

		DrawDebugSphere(GetWorld(), WallTopLocation, SphereTraceRadius, 16, FColor::Magenta, false, 1.f);
	}
	else
	{
		WallTopLocation = FVector::ZeroVector;
		WallHeight = 0.f;
	}
}

void UParkourComponent::CalWallThickness()
{
	if (!GetWorld()) return;

	FHitResult HitResult;
	VerticalTrace(65.f, HitResult);
	WallEndLocation = HitResult.bBlockingHit ? HitResult.ImpactPoint : WallTopLocation;
	WallIsThick = HitResult.bBlockingHit && WallEndLocation.Z >= (WallTopLocation.Z-5.f);
}

void UParkourComponent::SetMotionWarpingTargets(EParkourType ParkourType)
{
	if(ABaseCharacter* BaseCharacter = Cast<ABaseCharacter>(GetOwner()))
	{
		if(UMotionWarpingComponent* MotionWarpingComponent = BaseCharacter->MotionWarpingComponent)
		{
			float StartForwardOffset;
			float StartUpOffset;
			float EndForwardOffset;
			float EndUpOffset;

			FVector StartLocation = WallTopLocation;
			FVector EndLocation = WallEndLocation;

			switch (ParkourType)
			{
			case EParkourType::Mantle:
				StartForwardOffset = MantleStartForwardOffset;
				EndForwardOffset = MantleEndForwardOffset;
				StartUpOffset = MantleStartUpOffset;
				EndUpOffset = MantleEndUpOffset;
				break;

			case EParkourType::Climb:
				StartForwardOffset = ClimbStartForwardOffset;
				EndForwardOffset = ClimbEndForwardOffset;
				StartUpOffset = ClimbStartUpOffset;
				EndUpOffset = ClimbEndUpOffset;
				break;

			case EParkourType::Vault:
				StartForwardOffset = VaultStartForwardOffset;
				EndForwardOffset = VaultEndForwardOffset;
				StartUpOffset = VaultStartUpOffset;
				EndUpOffset = VaultEndUpOffset;
				break;

			default:
				StartForwardOffset = 0.f;
				EndForwardOffset = 0.f;
				StartUpOffset = 0.f;
				EndUpOffset = 0.f;
				break;
			}
			WarpOffset(StartLocation, StartForwardOffset, StartUpOffset);
			WarpOffset(EndLocation, EndForwardOffset, EndUpOffset);

			MotionWarpingComponent->AddOrUpdateWarpTargetFromLocationAndRotation
				(FName("Start"), StartLocation, WallRotation);
			MotionWarpingComponent->AddOrUpdateWarpTargetFromLocationAndRotation
				(FName("End"), EndLocation, WallRotation);

			if (GEngine)
			{
				GEngine->AddOnScreenDebugMessage(
					-1, 3.f, FColor::Cyan,
					FString::Printf(TEXT("StartLocation: X=%.2f Y=%.2f Z=%.2f"),
						StartLocation.X, StartLocation.Y, StartLocation.Z)
				);
				GEngine->AddOnScreenDebugMessage(
					-1, 3.f, FColor::Yellow,
					FString::Printf(TEXT("EndLocation: X=%.2f Y=%.2f Z=%.2f"),
						EndLocation.X, EndLocation.Y, EndLocation.Z)
				);
			}
		}
	}
}

void UParkourComponent::WarpOffset(FVector& Location, float ForwardOffset, float UpOffset)
{
	Location.Z += UpOffset;
	Location += UKismetMathLibrary::GetForwardVector(WallRotation) * ForwardOffset;
}

void UParkourComponent::SetParkourState(bool bInParkour)
{
	bIsInParkour = bInParkour;
	if(ABaseCharacter* Character = Cast<ABaseCharacter>(GetOwner()))
	{
		if(bInParkour)
		{
			Character->DisableInput(Character->GetController<APlayerController>());
			Character->GetCharacterMovement()->SetMovementMode(MOVE_Flying);
			Character->GetCapsuleComponent()->SetCollisionEnabled(ECollisionEnabled::NoCollision);
			Character->CameraBoom->bDoCollisionTest = false;
			Character->bUseControllerRotationYaw = false;
			Character->CameraBoom->bEnableCameraRotationLag = true;
			Character->CameraBoom->CameraRotationLagSpeed = 10.f;
		}
		else
		{
			Character->EnableInput(Character->GetController<APlayerController>());
			Character->GetCharacterMovement()->SetMovementMode(MOVE_Walking);
			Character->GetCapsuleComponent()->SetCollisionEnabled(ECollisionEnabled::QueryAndPhysics);
			if (AController* Controller = Character->GetController())
			{
				FRotator ControlRot = Controller->GetControlRotation();
				ControlRot.Yaw = Character->GetActorRotation().Yaw;
				Controller->SetControlRotation(ControlRot);
			}
			Character->CameraBoom->bDoCollisionTest = true;
			Character->bUseControllerRotationYaw = true;
			Character->CameraBoom->bEnableCameraRotationLag = false;
			Character->CameraBoom->CameraRotationLagSpeed = 10.f;
		}
	}
}

留言
